EX Series

All units are rated at 100 Watts.
Suitably housed, multi-unit assemblies do not necessarily require passive cross-over systems between bass, mid and high frequency units. We reserve the right to vary the specifications and designs without prior notification. Despatch of drive units, ex-works, worldwide, is normally within 28 working days of receipt of payment.
Specifications

The latest EX series of drive units will completely transform all existing Lowther Loudspeaker Systems. Every Lowther Owner may now enjoy the greatly superior sound reproduction qualities which only the ‘EX’ drivers are capable of.

Each model in the EX range incorporates an acoustic chamber precisely tuned for optimum performance. Cone assemblies are pressure balanced between the acoustic chamber at the rear and a phasing equalizer fitted to the front. No unwanted oscillations of the speech coil occur. Only bass frequencies will pass through the acoustic chamber, so avoiding bass/mid-range confusion, often a cause of coloration.

Using the latest method of construction, the inner cone is now isolated from the outer. This is not readily visible, but what is noticeable is that the rim of the inner cone is terminated with a reverse roll. Where once sound frequencies cancelled each other and information was lost, now all that information is retrieved and can be enjoyed. Where once sound frequencies were reinforced by the two cones working in unison at certain frequencies, now there is no over-forward sound reproduced. The frequency range is so smooth, and so much more detail from the recorded source is reproduced, that an entirely new level of listening experience will be enjoyed.

The EX series Drive Units are the best full range drive units ever produced. They are designed to fit into every Lowther cabinet design, both past and present, without any modification being necessary. These revolutionary drive units are a must for all Lowther owners. Everyone can now enjoy an entirely new experience of listening pleasure.

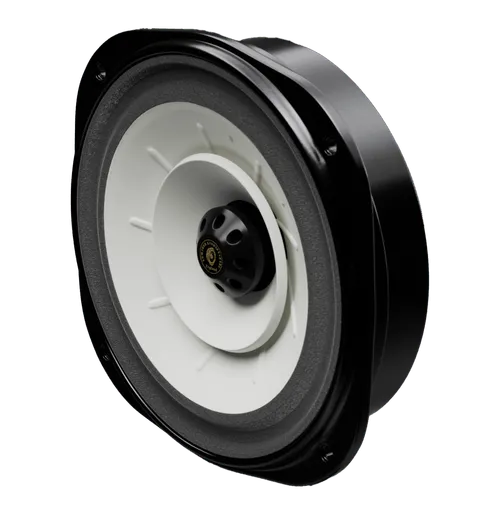

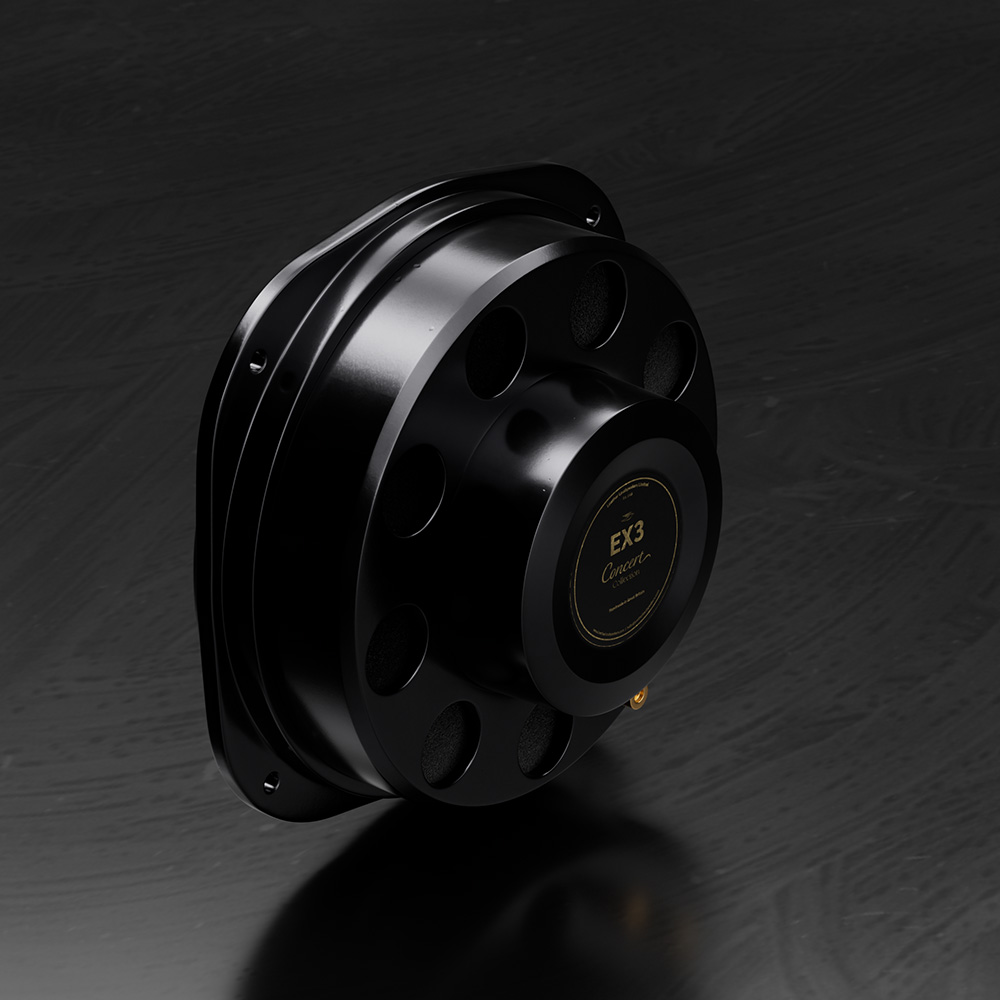

 EX2EX3EX4
Datasheet
Overall diameter22.5 cm22.5 cm22.5 cm
Overall depth8.5 cm8.5 cm8.5 cm
Depth from rear of Mounting Frame7.6 cm7.6 cm7.6 cm
PCD mounting centres20.8 cm20.8 cm20.8 cm
Baffle hole cut-out19.0 cm19.0 cm19.0 cm
Magnet Ring diameter7.6 cm9.0 cm9.0 cm
Voice coil diameter3.9 cm3.9 cm3.9 cm
Voice coil impedance (nominal)8 or 15 Ω8 or 15 Ω8 or 15 Ω
Air gap width1.0 mm1.0 mm1.0 mm
Air gap height5.0 mm5.0 mm5.0 mm
Magnet typeNeodymium Neodymium Neodymium
Flux density (1 Tesla=10,000 gauss)1.7 Tesla2.1 Tesla2.2 Tesla
DiaphragmTwin paperTwin paperTwin paper
Frequency response30 Hz-20 kHz30 Hz-22 kHz30 Hz-22 kHz
Maximum voice coil travel∓ 1 mm∓ 1 mm∓ 1 mm
Shipping weight3.0 kg3.0 kg3.0 kg
